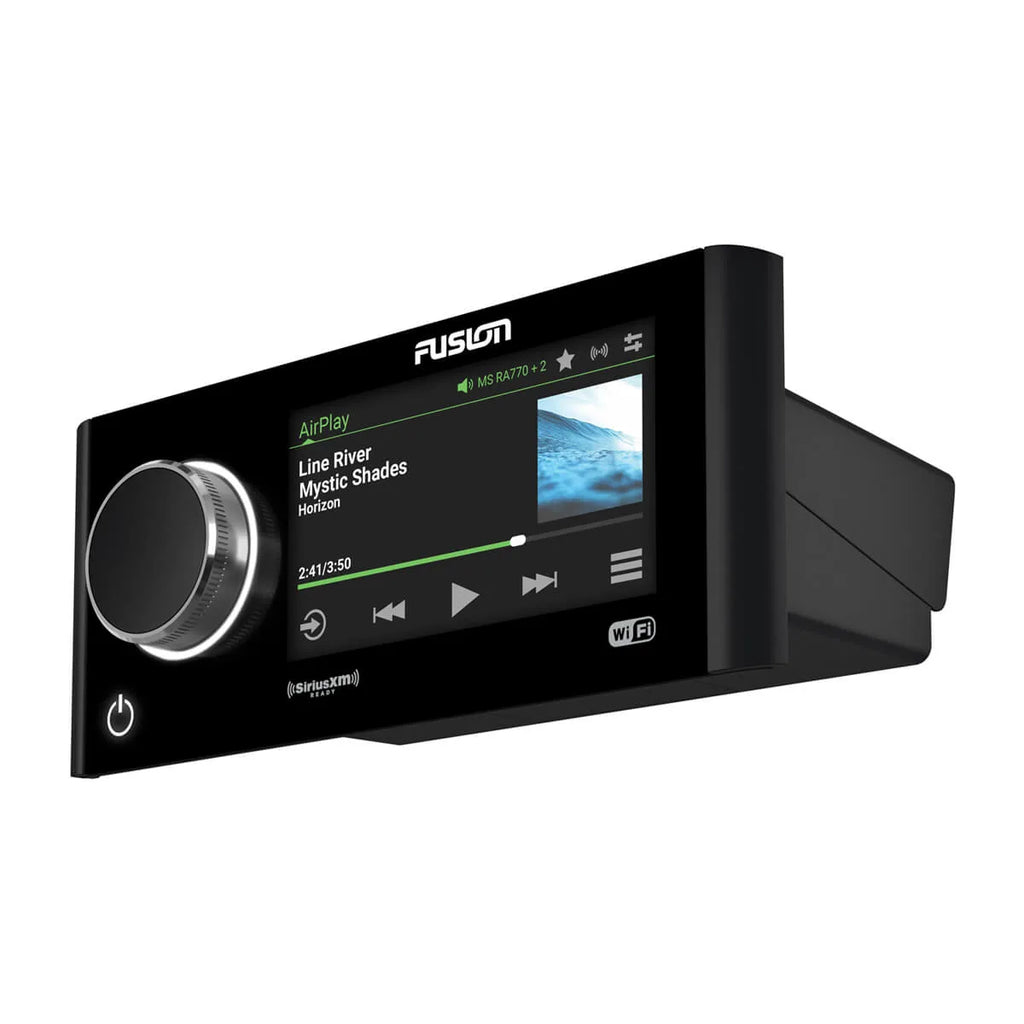

Fusion Apollo™ MS-RA770 Marine Head Unit
Fusion Apollo™ MS-RA770 Marine Head Unit
Overview
THE SUM OF AUDIO INNOVATION
The world's first touchscreen marine stereo with the AirPlay® 2 software feature and built-in Wi-Fi® connectivity, Apollo RA770 has redefined audio excellence with revolutionary technology and innovative design.
In the Box
- Fusion MS-RA770 marine stereo
- Mounting gasket
- Four 8-gauge, self-tapping screws
- Two screw covers
- Power and speaker wiring harness
- Auxiliary-in, line-out, and subwoofer-out wiring harnesses
- 6 ft (2 meter) NMEA 2000® drop cable
- Dust cover
- Documentation
Specs
General | |
| Water rating | IPX6 and IPX7 (front panel only, when properly installed) |
|---|---|
| Current (max) | 15 A |
| Multi-language interface | Bulgarian, Chinese (Simplified), Chinese (Traditional), Croatian, Czech, Danish, Dutch, English, Finnish, French, German, Greek, Italian, Japanese, Korean, Norwegian, Polish, Portuguese-Brazil, Portuguese-Portugal, Slovenian, Spanish, Swedish, Thai, Turkish |
Electrical Features | |
| Power Input | 10.8 - 16 VDC |
|---|---|
| Compass-safe distance | 5.9" (150 mm) |
Stereo Features | |
| Peak power | 280 W |
|---|---|
| Rated power output (2 ohm) | 43 watts RMS x 4 @ 14.4 V input <10%> |
| Rated power output (4 ohm) | 26 watts RMS x 4 @ 14.4 V input <10%> |
| Built-in Wi-Fi® | yes |
| Built-in Digital Signal Processing (DSP) | yes (with custom DSP profile setup using Garmin Audio app) |
| Stereo networking | yes (wired or wireless) |
| Garmin audio control | yes (MFD, smart device and Garmin watch) |
| Multi-Zone™ technology | 4 zones |
| Bluetooth® wireless technology | yes |
| ANT® wireless technology | yes |
| SiriusXM-ready | yes |
| DAB+ ready | yes |
| Optical audio input | yes |
| Supports ERX wired remote | yes |
| Supports NRX wired remote | yes |
| Software updates | Over-the-air updates via Garmin Audio app/USB |
Sources | |
| Supported sources |
AM, FM, BLUETOOTH®, Apple® AirPlay® 2, digital optical input, USB audio, iPhone®, iPod®, AUX x2, UPnP, MTP SiriusXM-Ready (U.S. only, requires optional SiriusXM Connect vehicle tuner) DAB+ ready (available in Europe and Australia only) |
|---|---|

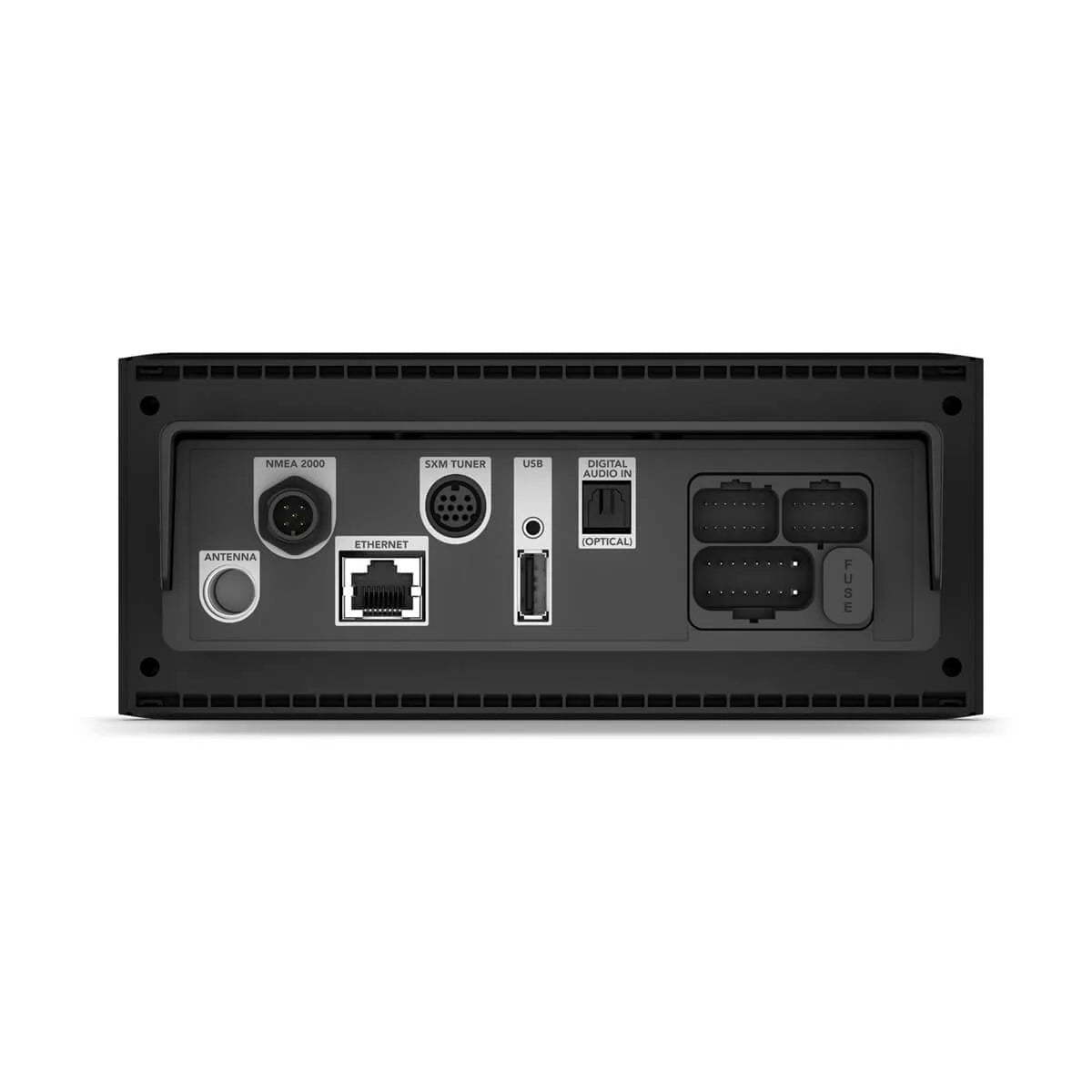

Networking & Connections | |
| Auxiliary inputs (RCA) | 2 |
|---|---|
| Optical audio inputs (Digital Optical Input SPDIF) | 1 |
| Ethernet ports | 1 |
| NMEA 2000® ports | 1 |
| NMEA 2000® LEN | 1 (50 mA) |
| USB 2.0 ports | 1 |
| SiriusXM ports | 1 |
| AM/FM ports (Motorola antenna connector) | 1 |
| Speaker connections | 4 (2 zone amplified) |
| RCA pre-out (left, right and subwoofer) | 4 zones (requires external amplification) |
| Line out | 4 (L + R per zone, requires external amplification) |
| Subwoofer out | 4 (1 mono output per zone, requires external amplification) |
| Wireless frequencies/protocols | Wi-Fi®: 2.4 GHz @ +15 dBm nominal BLUETOOTH®: 2.4 GHz @ +10 dBm nominal ANT®: 2.4 GHz @ +4 dBm nominal |
| ANT® wireless range | Up to 10 ft |
| Bluetooth® wireless range | up to 30 ft |
