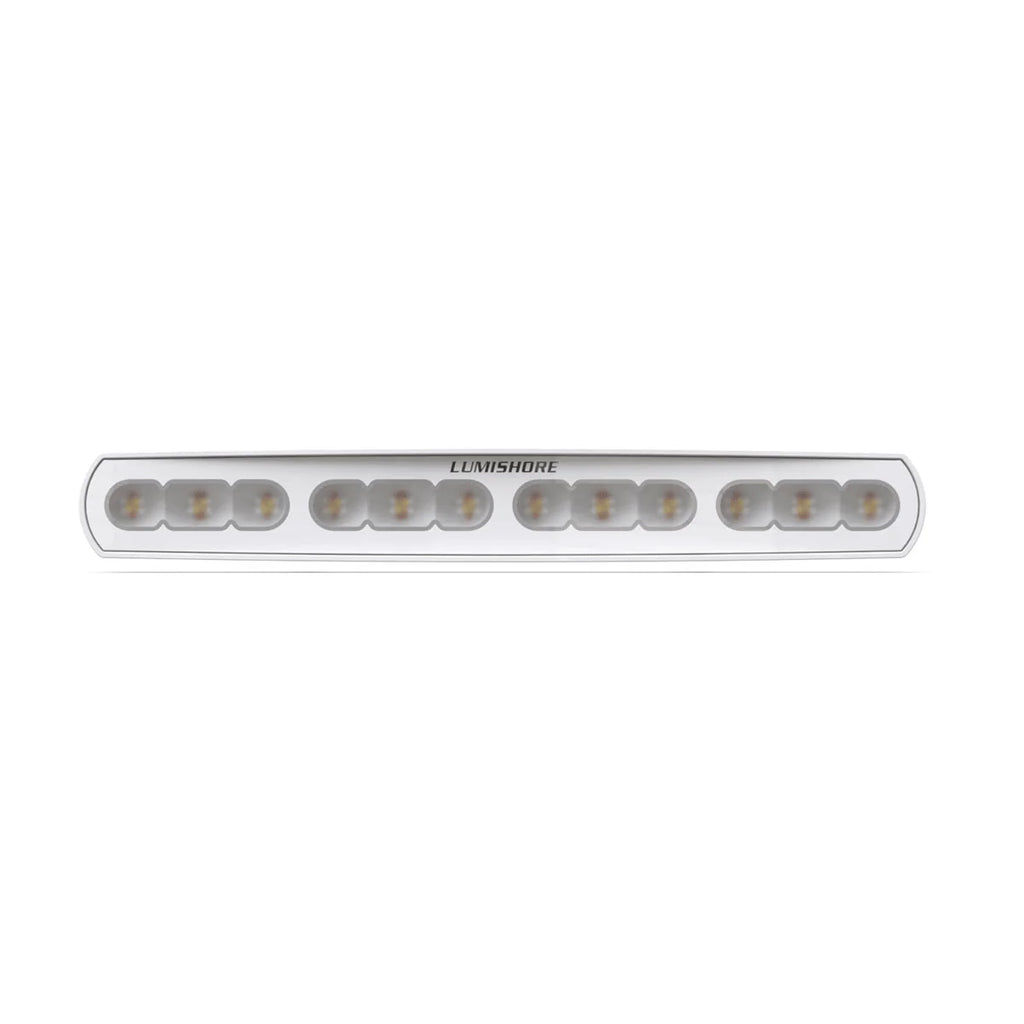

Lumishore® LUX Flood Light
White / 4" / Bracket
Prezzo promozionale
$70.00
Prezzo di listino $349.99
Passa alle informazioni sul prodotto
Lumishore® LUX Flood Light
Prezzo promozionale
$70.00
Prezzo di listino $349.99
Overview
HIGH-INTENSITY, FULL-COLOR FLOOD LIGHTING
Ideal for deck, cockpit or general security lighting, our powerful flood lights can fill a wide area with bright illumination in any color. Their unique design combines warm and cold white as well as red, green and blue light in a single unit. The 70- to 90-degree ultrawide-reaching oval beam angle provides full coverage and custom diffusion optics for consistent and smooth beam colors.
FULL-COLOR CRGBW LIGHTING
70- TO 90-DEGREE WIDE-BEAM ANGLE
1,050 OR 7,500 FIXTURE LUMENS
CONTROL VIA COMPATIBLE MFD, LUMISHORE DISPLAY, SMART DEVICE OR MOMENTARY SWITCH1
IP68-RATED FOR DUST AND WATER PROTECTION
3-YEAR WARRANTY
- The momentary switch requires a LUX Control Module; the MFD, Lumishore display or smart device requires the EOS-LUX Command Center
In the Box
- LUX flood light (based on selection)
- Flood light mounting bracket(s) (based on selection)1
1Flood light mounting bracket is not included with flush fit selection.
Specs
General | |
| Warranty | 3 years |
|---|---|
| LED colors | CRGBW, Full Spectrum RGB and Tuneable White (2700 K to 6500 K) in the same fixture |
| LED type | 3 x 3 W Red 3 x 3 W Green 3 x 3 W Blue 3 x 3 W White 3 x 3 W Warm White |
| Fixture lumens | 4": 1,050 18": 7,500 |
| Beam angle | 70°-90° oval beam |
| Number of lights per LUX light control module | 16 maximum |
| Electrical installation | 3 wire |
| Operating voltage | 10.5-31 VDC |
| Current consumption 12 V (max) | 4": 1.7 A 18": 9.2 A |
| Current consumption 24 V (max) | 4": 0.9 A 18": 4.6 A |
| Average power draw | 4": 22 W 18": 110 W |
| Construction | Powder coated aluminum body with frosted lens |
| Water and dust rating | IP68 |
Control Options | |
| Momentary switch | yes (via LUX Control Module) |
|---|---|
| EOS-LUX Command Center | yes |
| Compatible MFD | yes (via EOS-LUX Command Center) |
| Smart device | yes (via EOS-LUX Command Center) |
| EOS-LUX-SUPRA display | yes (via EOS-LUX Command Center) |
Mounting Dimensions | |
| Dimensions (width) | 4" (flush fit): 4.89" (124 mm) 4": 4.21" (107 mm) 18": 15.5" (394 mm) |
|---|---|
| Dimensions (depth) | 4" (flush fit): 1.76" (45 mm) 4": 2.2" (55.8 mm) 18": 2.68" (68 mm) |
| Dimensions (height) | 4" (flush fit): 1.89" (48 mm) 4": 1.77" (45 mm) 18": 2.08" (53 mm) |
| Mechanical installation | 4" (flush fit): Marine sealant and screws (not supplied) 4"/18": Stainless steel fixing brackets (supplied) |
