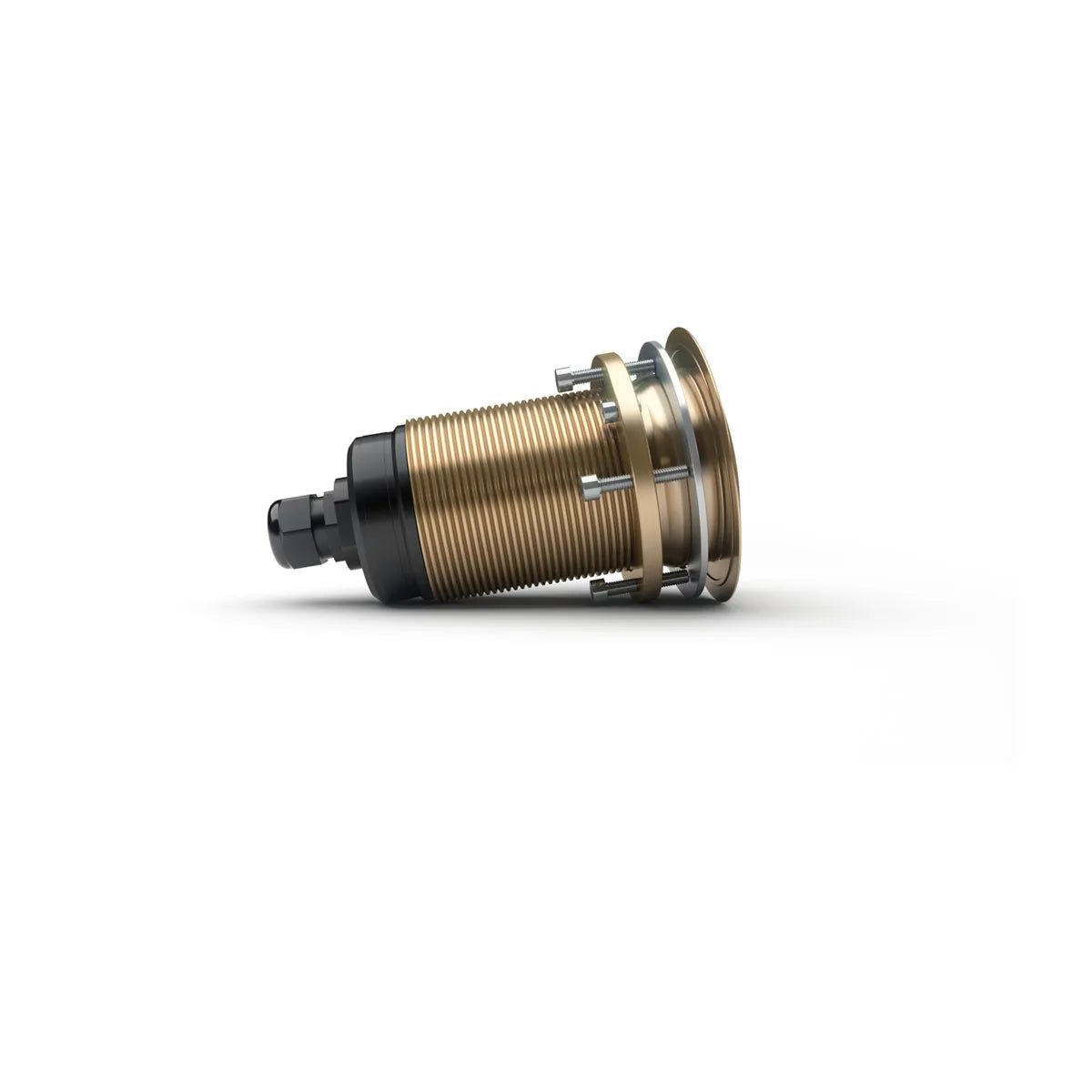

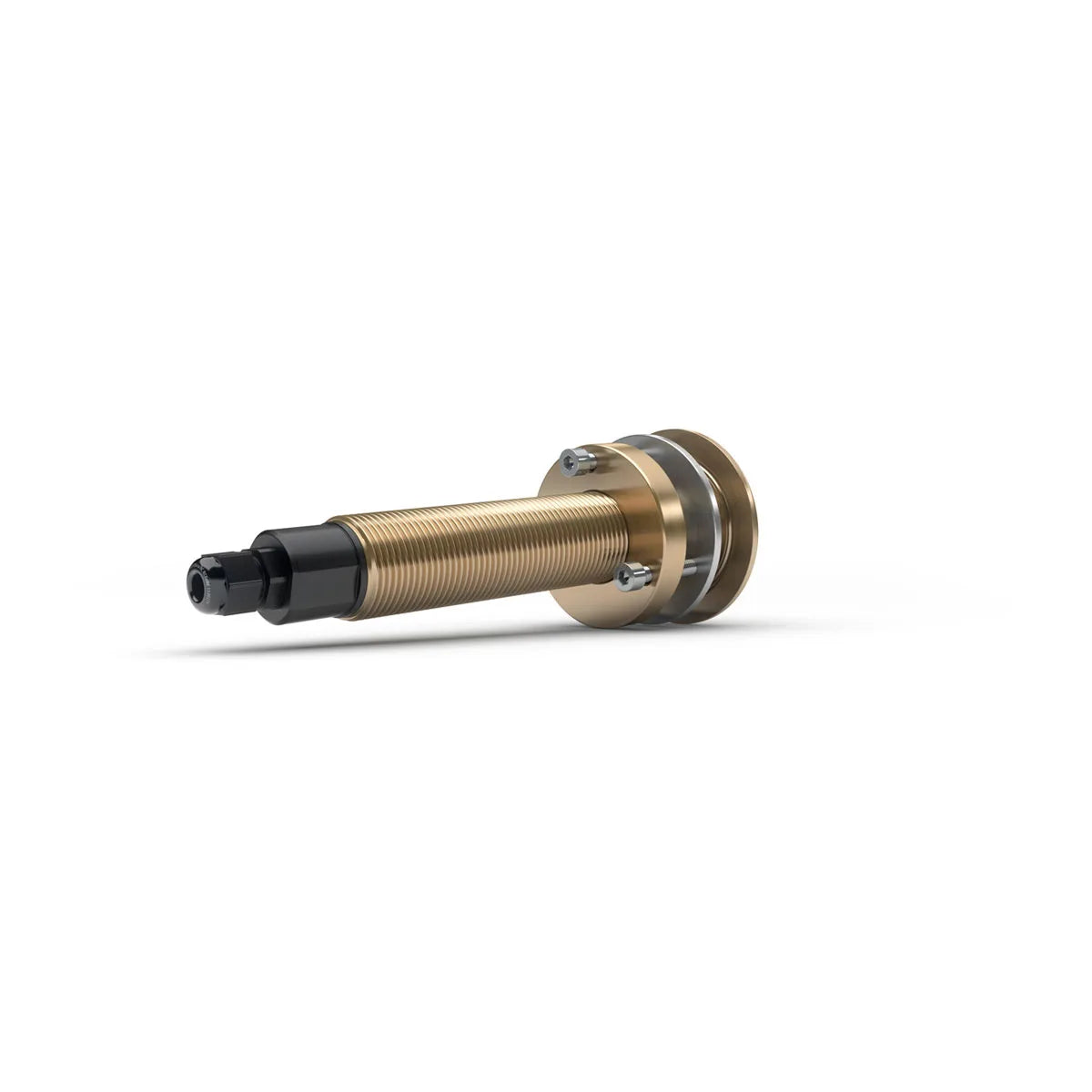

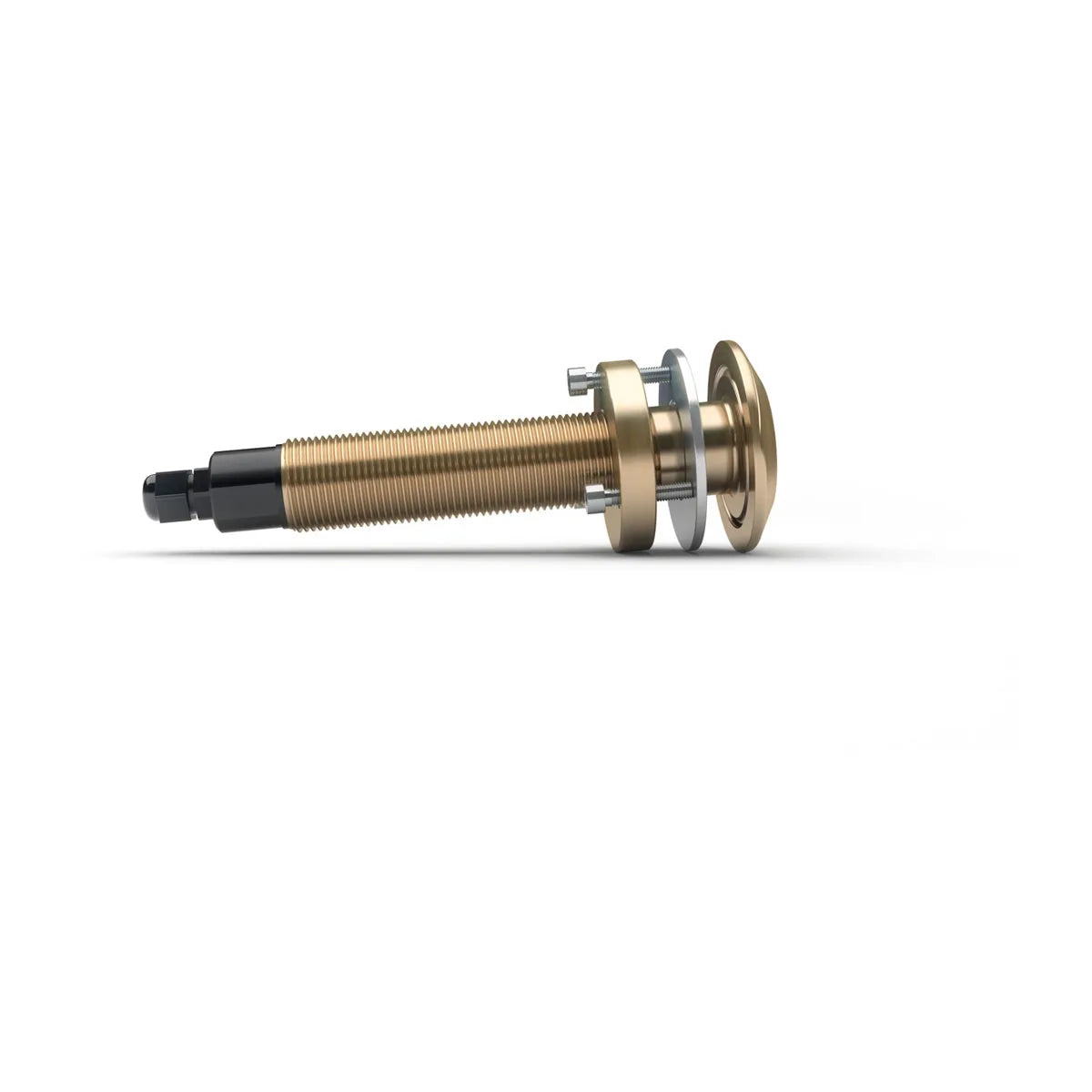

Lumishore® TIX204 Underwater Interchangeable Thru-hull
Lumishore® TIX204 Underwater Interchangeable Thru-hull
Overview
POWERFUL, INTERCHANGEABLE UNDERWATER LIGHTING
Enjoy high-output illumination with these thru-hull LED lights that, with their wide-beam angle, create a beautiful halo effect around your boat. The internal LED array with integrated drivers simplifies installation and allows servicing from inside the hull — without the need to haul the vessel. Choose from the available colors to suit your vessel.
FULL-COLOR, DUAL-COLOR AND SINGLE-COLOR OPTIONS
5,100–20,000 FIXTURE LUMENS
MARINE-GRADE CONSTRUCTION
WIDE-BEAM ANGLES
IP68-RATED FOR DUST AND WATER PROTECTION
3-YEAR WARRANTY
In the Box
- TIX204 light with fixings
- Fuse kit
Specs
General | |
| Warranty | 3 years |
|---|---|
| LED colors | Single color, White (6500K), Blue, Green |
| LED type | 11 x 10 W White/22 x 3 W Blue/22 x 3 W Green |
| Fixture lumens | 5,300 |
| Beam angle | 60° |
| Electrical installation | Simple 2 wire connection |
| Operating voltage | 12 V/24 V |
| Operating voltage range | 10.5-31 VDC |
| Current consumption 12 V (max) | 4 A |
| Current consumption 24 V (max) | 1.9 A |
| Average power draw | 48 W |
| Construction | Marine bronze body with Borosilicate glass lens |
| Water and dust rating | IP68 |
Control Options | |
| Direct power via on/off switch | yes |
|---|---|
Lighting Functionality | |
| Functionality with direct power | Startup in model color |
|---|---|
| Applicable controllers/hubs | Direct power |
Mounting Dimensions | |
| Mounting diameter clearance (with bezel) | 2.56" (65 mm) |
|---|---|
| Mounting depth clearance | 6.57" (167 mm) |
| Frontal protrusion (profile) | 0.36" (9 mm) |
| Mounting hole | 1.1" (28 mm) |
| Dimensions (width) | 2.56" (65 mm) |
| Dimensions (depth) | 6.89" (175 mm) |
| Dimensions (height) | 2.56" (65 mm) |
| Mechanical installation | Bonding required on non-conductive hulls (via connection on housing). Hull isolation sleeves must be used on conductive hull materials, including wood and carbon fiber (kit sold separately). |
