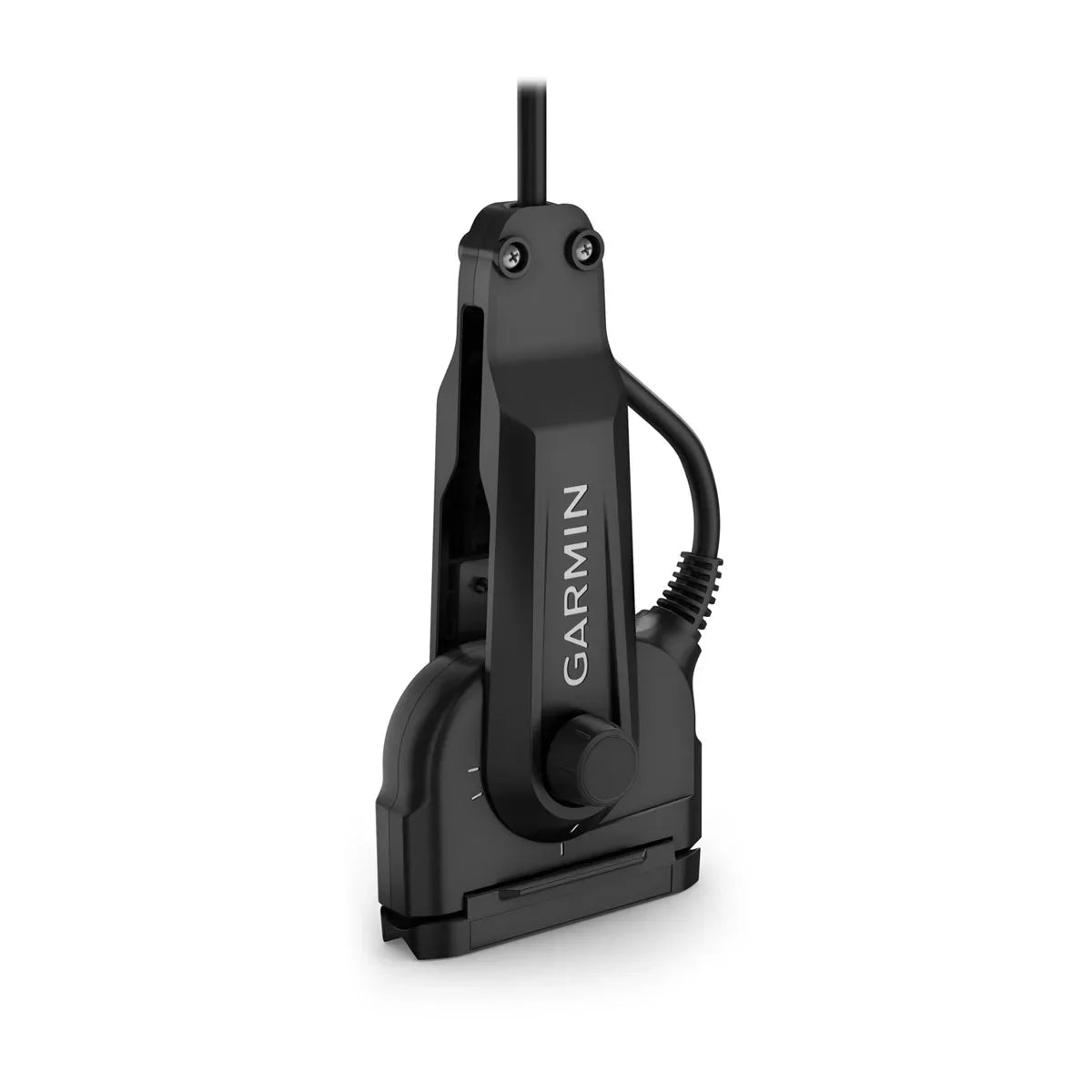

Panoptix™ PS22-IF
Panoptix
Prijs met korting
$220.00
Normale prijs $1,099.99
Ga direct naar de productinformatie
Panoptix™ PS22-IF
Prijs met korting
$220.00
Normale prijs $1,099.99
Overview
In the Box
- Panoptix PS22-IF transducer
- Transducer rotator and bracket
- Removable lens
- Hardware
- Documentation
Specs
General | |
| Transducer beamwidth | With lens: 12° x 120° Without lens: 57° x 120° |
|---|---|
| Transducer cable length | 9.8' (3 m) |
| Dimension | 9.1” x 4.1” x 2.5” (23.1 x 10.4 x 6.4 cm) |
| Weight | 2.60 lbs (1.18 kg) |
| Temperature range | Operating: 0° C to 40° C |
Electrical Features | |
| Power input | 10-32 V |
|---|---|
| Fuse | 4A |
Sonar Features | |
| Frequency | 417 kHz |
|---|---|
| Transmit power | 48 W |
| Maximum depth | 300' |
Networking & Connections | |
| Garmin Marine Network Ports | 1 (standard connector) |
|---|---|
Sonar Modes | |
| LiveVü Down | yes |
|---|---|
| LiveVü Forward | yes |
| Traditional sonar source | yes |
