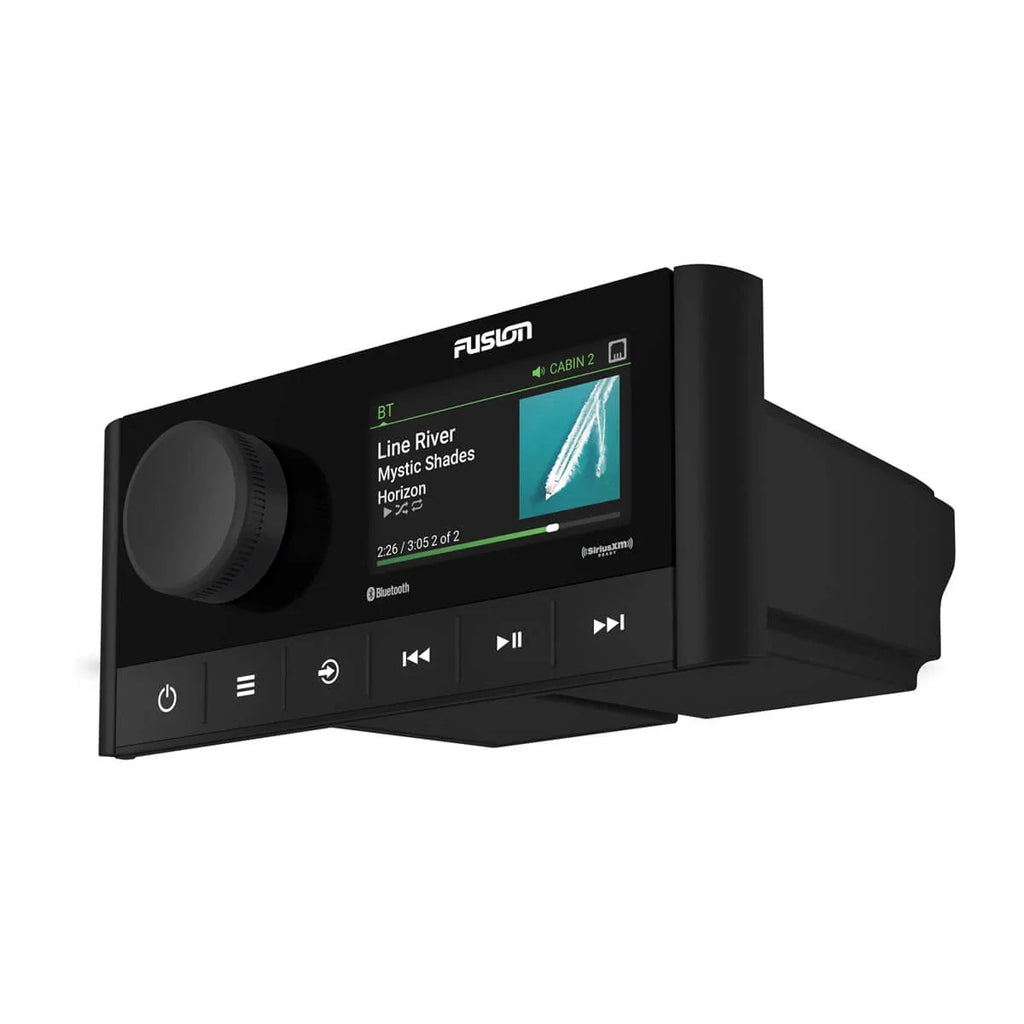

Fusion® MS-RA210 Marine Head Unit
Fusion® MS-RA210 Marine Head Unit
Overview
INDUSTRY BENCHMARK FOR MARINE ENTERTAINMENT
The MS-RA210 marine stereo from Fusion® is a stylish addition to your boat. Incorporating some of the Apollo™ Series' key features, the stereo includes built-in Digital Signal Processing (DSP) technology, modern design aesthetics and advanced source options.
Enjoy more audio source options than ever before.
FREEDOM OF CHOICE TO LISTEN TO WHAT YOU WANT
Take advantage of the many source options available, including Bluetooth® technology, DAB+ radio, AM/FM radio, AUX and USB connections.
ADVANCED SIRIUSXM FEATURES AVAILABLE
Along with the addition of on-screen album art, a selection of advanced features is now available on SiriusXM.
- Requires app on your compatible smartphone
In the Box
- Fusion MS-RA210 marine stereo
- Mounting gasket
- Four 6-gauge, self-tapping screws
- Two screw covers
- Power and speaker wiring harness
- Auxiliary-in, line-out, and subwoofer-out wiring harnesses
- 2 meter (6 ft) NMEA 2000® drop cable
- 6 ft (2 meter) NMEA 2000 drop cable
- Documentation
Specs
General | |
| Dimension | 6.18" x 2.68" x 4.99" (156 x 68 x 126.6 mm) |
|---|---|
| Weight | 0.77 lbs (350 g) |
| Water rating | IPX6 and IPX7 (front panel only, when properly installed) |
| Display | 2.7" optically bonded color LCD |
| Operating temperature | 32° to 122° F (0° to 50° C) |
| Current (max) | 15 A |
| Multi-language interface | Bulgarian, Chinese (Simplified), Chinese (Traditional), Croatian, Czech, Danish, Dutch, English, Finnish, French, German, Greek, Italian, Japanese, Korean, Norwegian, Polish, Portuguese-Brazil, Portuguese-Portugal, Slovenian, Spanish, Swedish, Thai, Turkish |
Audio | |
| Amplifier | Class-D (4 ohm) |
|---|---|
Electrical Features | |
| Power Input | 10.8 - 16 VDC |
|---|---|
| Compass-safe distance | 5.9" (150 mm) |
Stereo Features | |
| Peak power | 200 W |
|---|---|
| Rated power output (4 ohm) | 26 watts RMS x 4 @ 14.4 V input <10%> |
| Built-in Digital Signal Processing (DSP) | yes (with custom DSP profile setup using Garmin Audio app) |
| Garmin audio control | yes (MFD, smart device and Garmin watch) |
| Multi-Zone™ technology | 2 zones |
| Bluetooth® wireless technology | yes |
| ANT® wireless technology | yes |
| SiriusXM-ready | yes |
| DAB+ ready | yes |
| Supports NRX wired remote | yes |
| Software updates | USB |
Sources | |
| Supported sources |
AM, FM, BLUETOOTH®, USB audio, iPhone®, iPod®, AUX x1, MTP SiriusXM-Ready (U.S. only, requires optional SiriusXM Connect vehicle tuner) DAB+ ready (available in Europe and Australia only) |
|---|---|
Networking & Connections | |
| Auxiliary inputs (RCA) | 1 |
|---|---|
| NMEA 2000® ports | 1 |
| NMEA 2000® LEN | 1 (50 mA) |
| USB 2.0 ports | 1 |
| SiriusXM ports | 1 |
| AM/FM ports (Motorola antenna connector) | 1 |
| Speaker connections | 4 (2 zone amplified) |
| RCA pre-out (left, right and subwoofer) | 2 zones (requires external amplification) |
| Line out | 2 (L + R per zone, requires external amplification) |
| Subwoofer out | 2 (1 mono output per zone, requires external amplification) |
| Wireless frequencies/protocols | BLUETOOTH®: 2.4 GHz @ +12 dBm nominal ANT®: 2.4 GHz @ +7 dBm nominal |
| ANT® wireless range | Up to 10 ft |
| Bluetooth® wireless range | up to 30 ft |
